Description
STANDARD FEATURES
- Unit weighs 27.5 lbs. without the battery
- 275-lb. weight capacity
- Top speed up to 3.7 mph

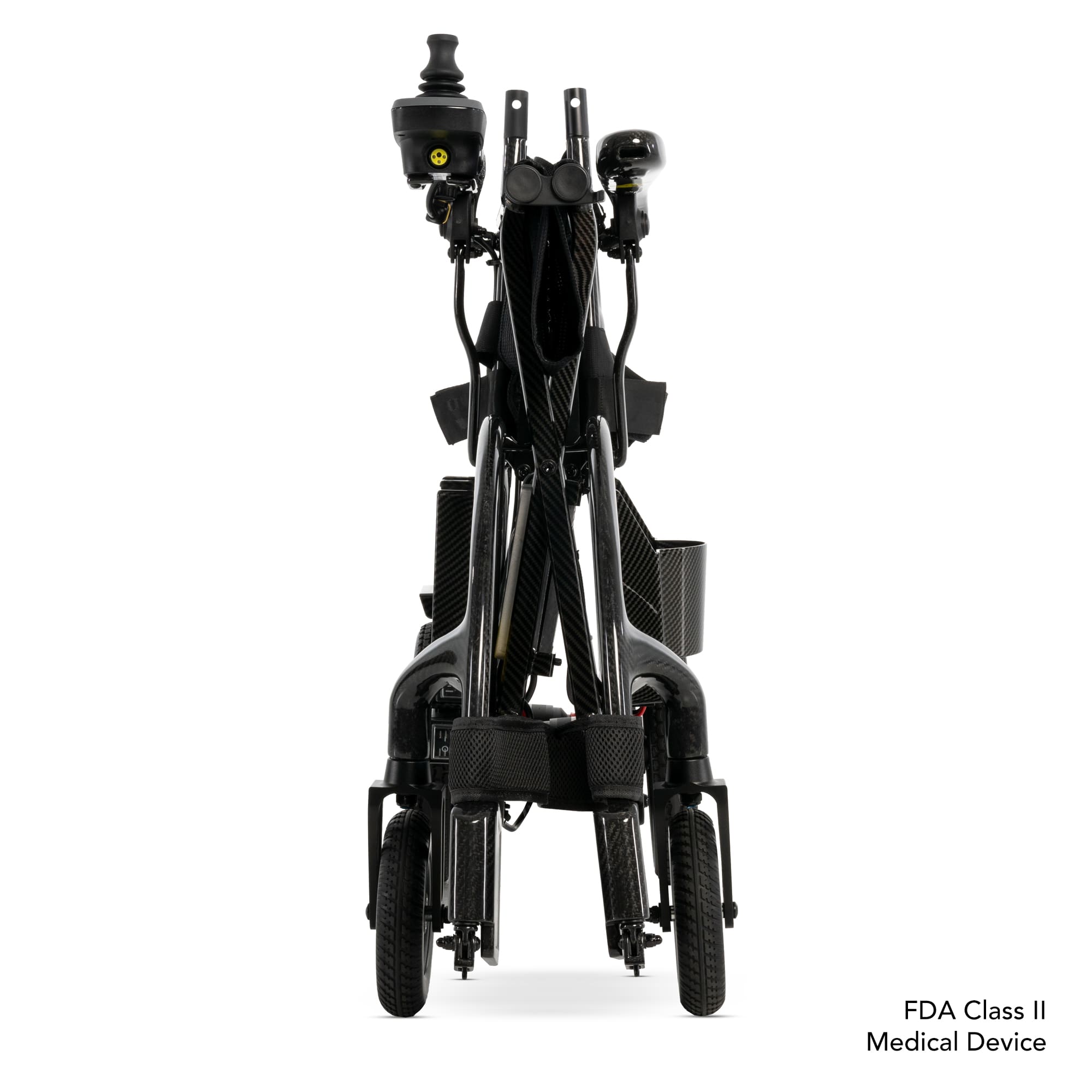

- X-frame design allows the unit to fold
- nearly flat in vertical position
- Advanced carbon fiber frame provides
- durability and reduced weight
- Folded dimensions: 34” L x 12” W x 30” H
- 18” x 18” seat with storage pocket on back
- Flip-up, lightweight, carbon fiber arms
- Adjustable foot rests
- Airline-compliant lithium battery** (10 Ah only)
- Cushion and adjustable lap belt
- Programmable quick disconnect joystick
- Carbon fiber Storage with cup holder
- Collapsible handles for easy storage
OPTIONAL ACCESSORIES
- Additional 10 Ah airline-compliant battery**
- Battery Travel Bag
- Jazzy Travel Kit (Coming Soon)
- Military Patches
- Simplicity Cushion (18” x 18”)
- Mesh Cup Holder
| Model | Jazzy Carbon 27x |
|---|---|
| Weight Capacity | 275 lbs. |
| Maximum Speed* | Up to 3.7 mph |
| Ground Clearance | 3” |
| Turning Radius** | 35.4” |
| Overall Length** | 41” |
| Overall Width | 23” |
| Front Casters | 7” solid |
| Drive Wheels | 10” solid |
| Range Per Charge* | Up to 8 miles |
| Total Weight Without Batteries | 27.5 lbs. |
| Standard Seat | 18” x 18” |
| Motor Output | 24v/150W |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | 24 V 10 AH |
| Battery Charger | 3.5 amp |
| Warranty | Frame: 5 years Electrical Control/Lever System, Motor/Drive System, Bearing Sleeve, and Battery: 13-month |
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments. K0899 Power Mobility Device not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.*
