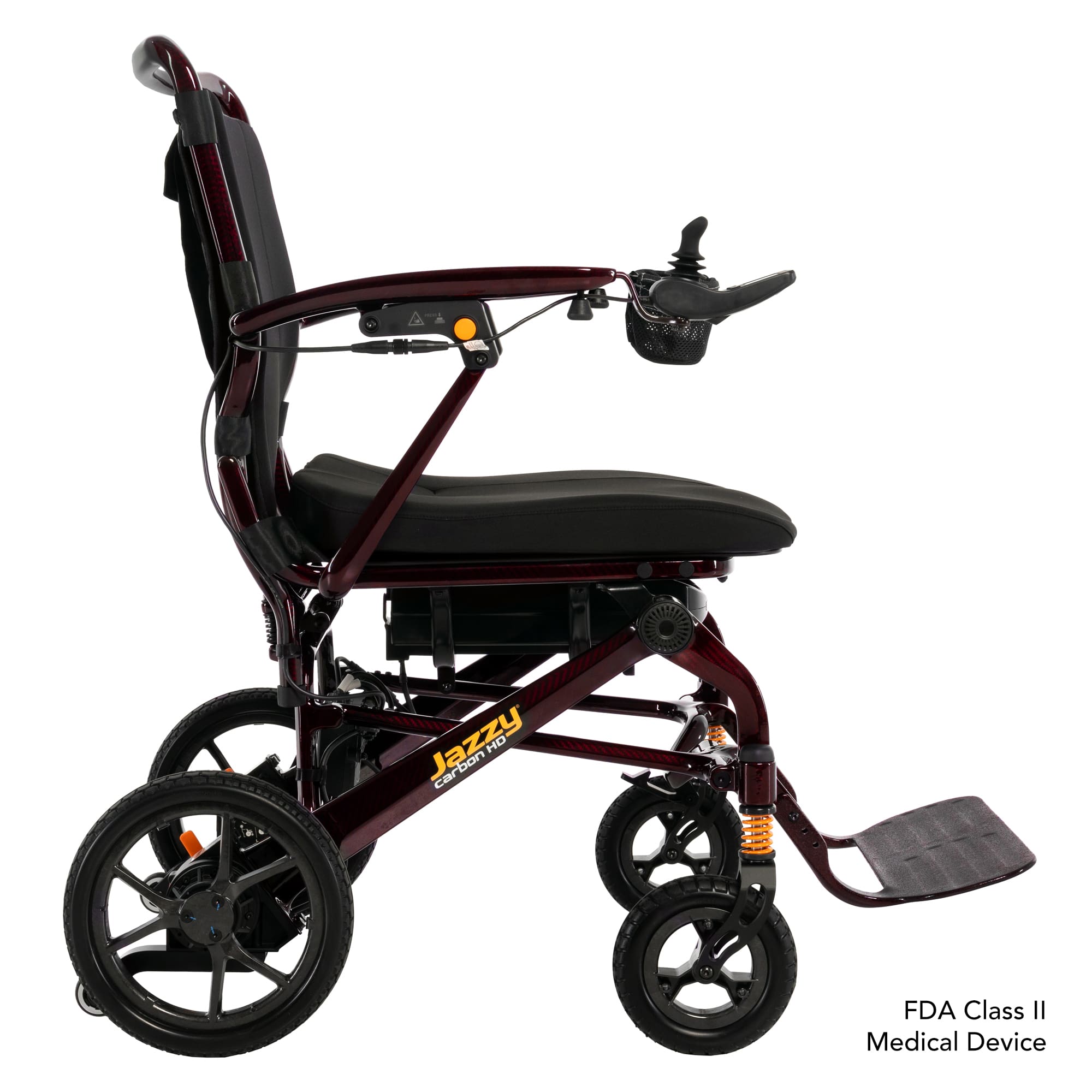

Description
FEATURES
- Unit weighs 32.2 lbs. without the battery
- 400-lb. weight capacity
- Durable carbon fiber frame

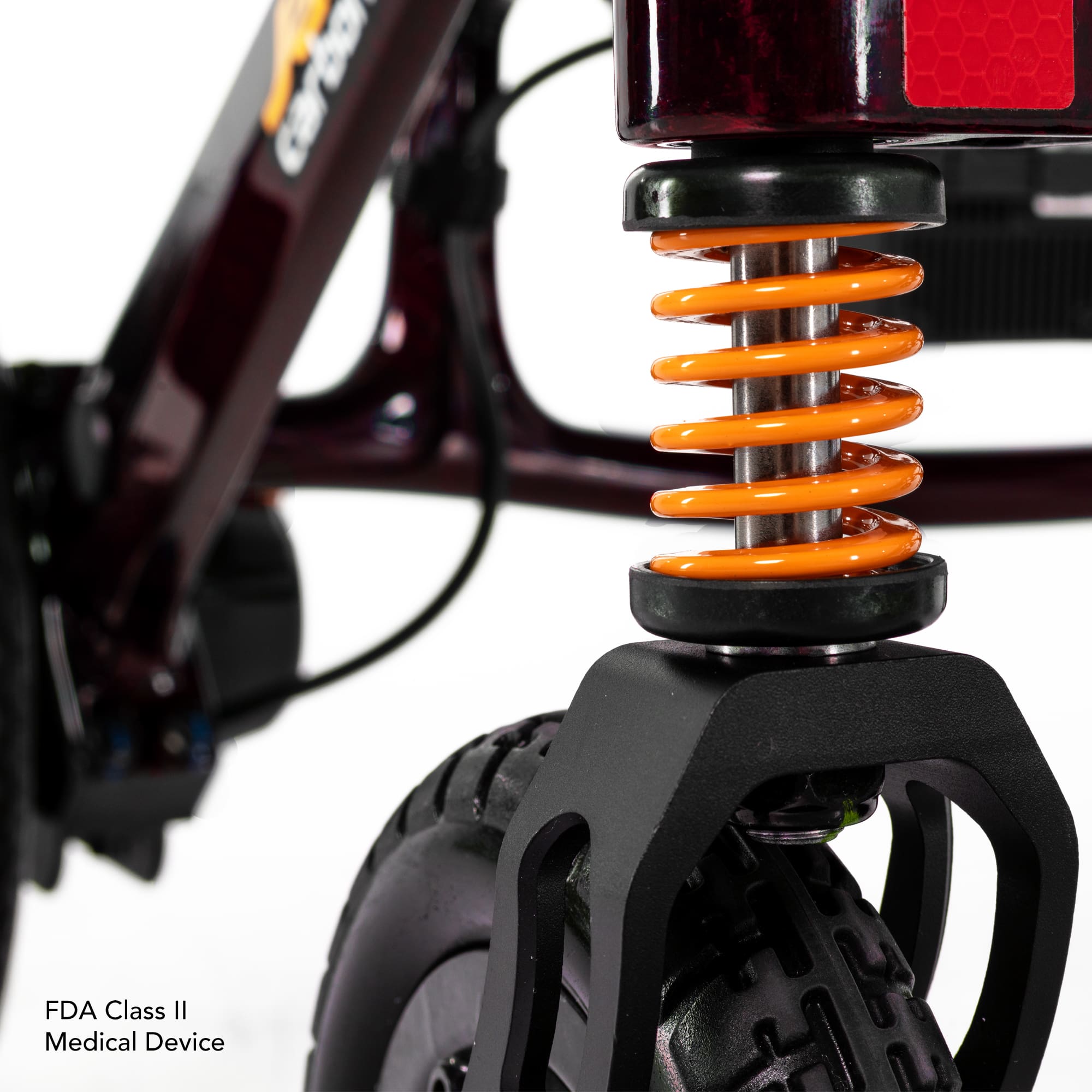

- Front and rear suspension
- Top speed of up to 3.7 mph
- Folded dimensions: 31.3” L x 26.4” W x 13 H

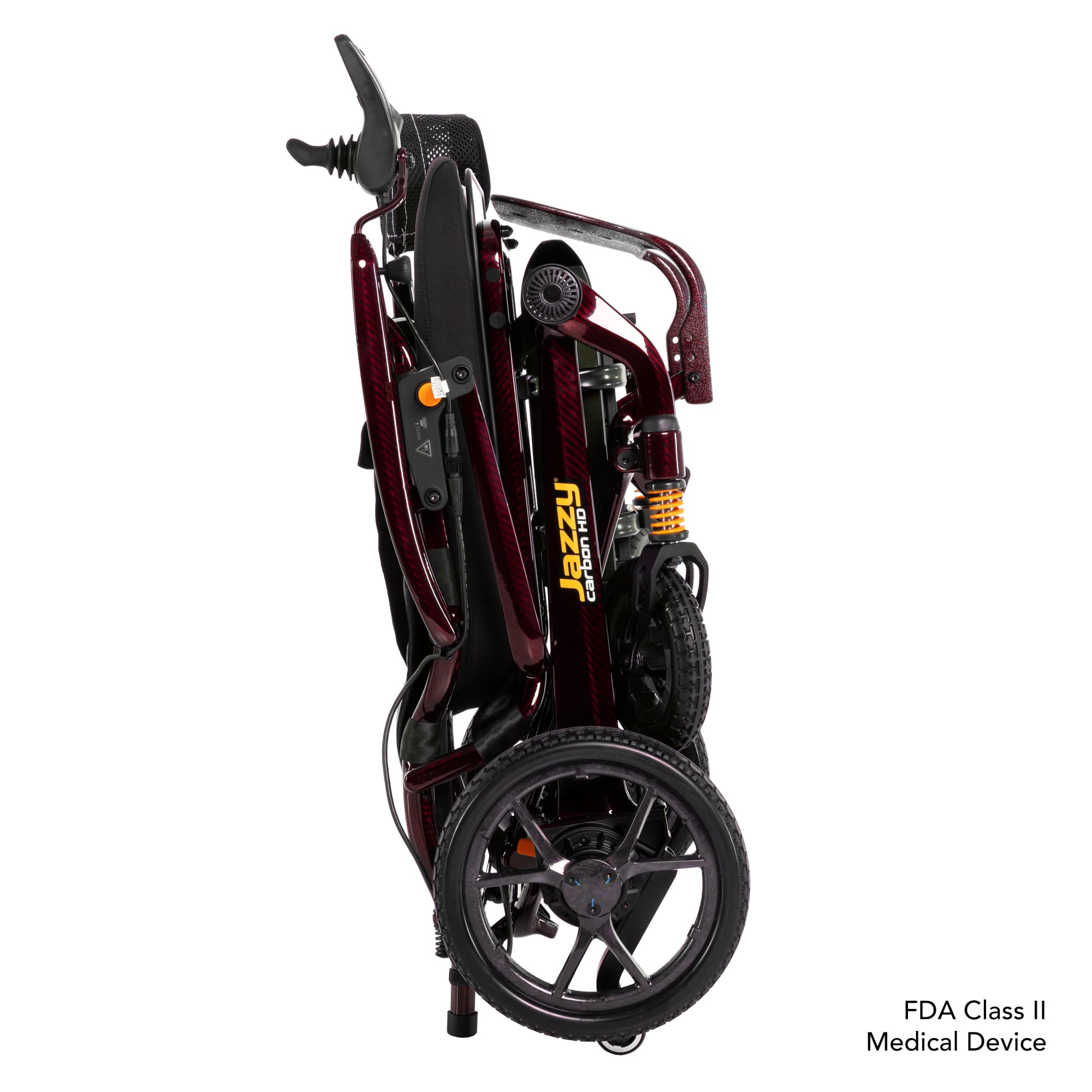

- Easy fold design that locks into folded position
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion

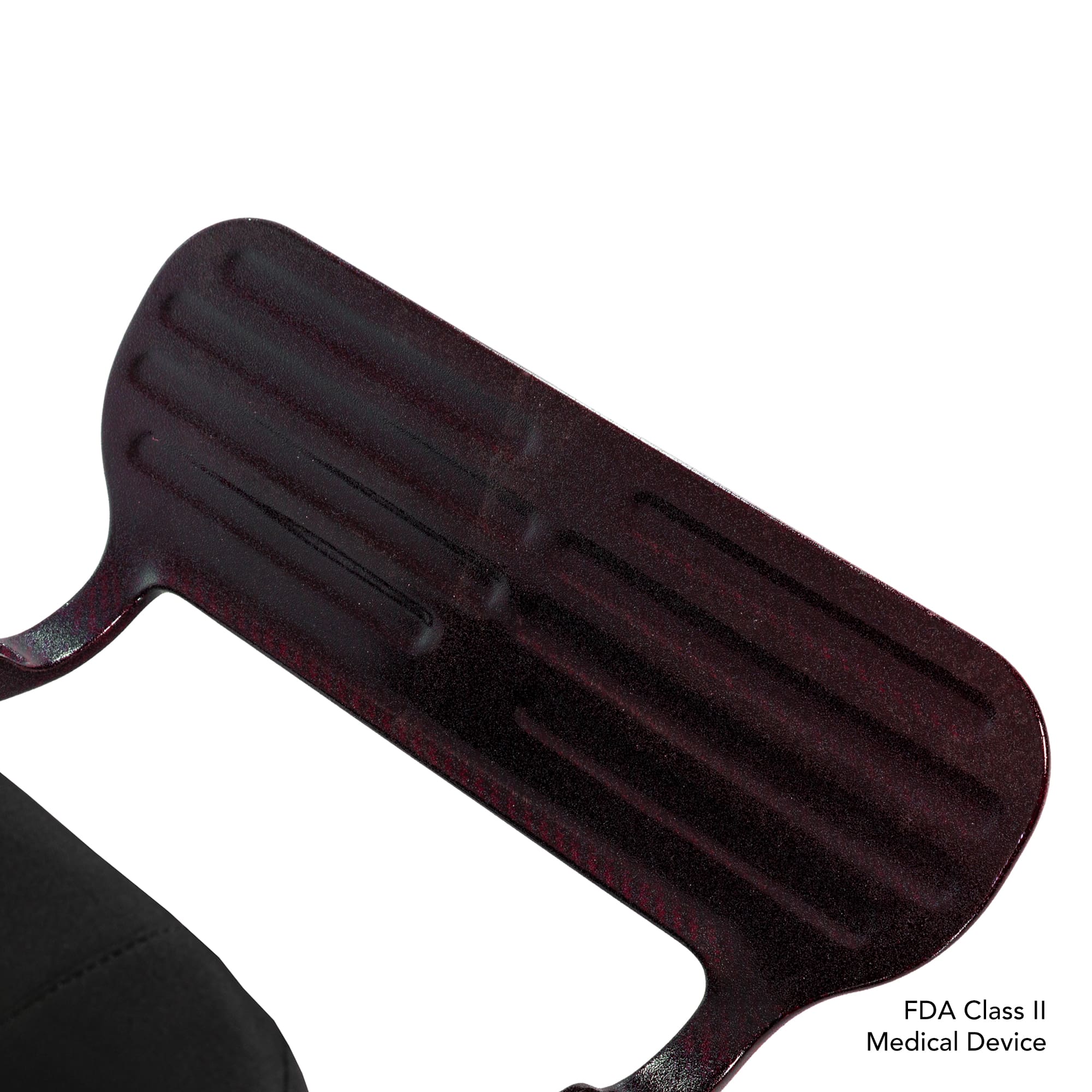

- Extra-wide adjustable foot platform 17.25” W x 5.9” D
- 20 Ah lithium battery** charges quickly (Standard)
- Storage pocket on back of seat

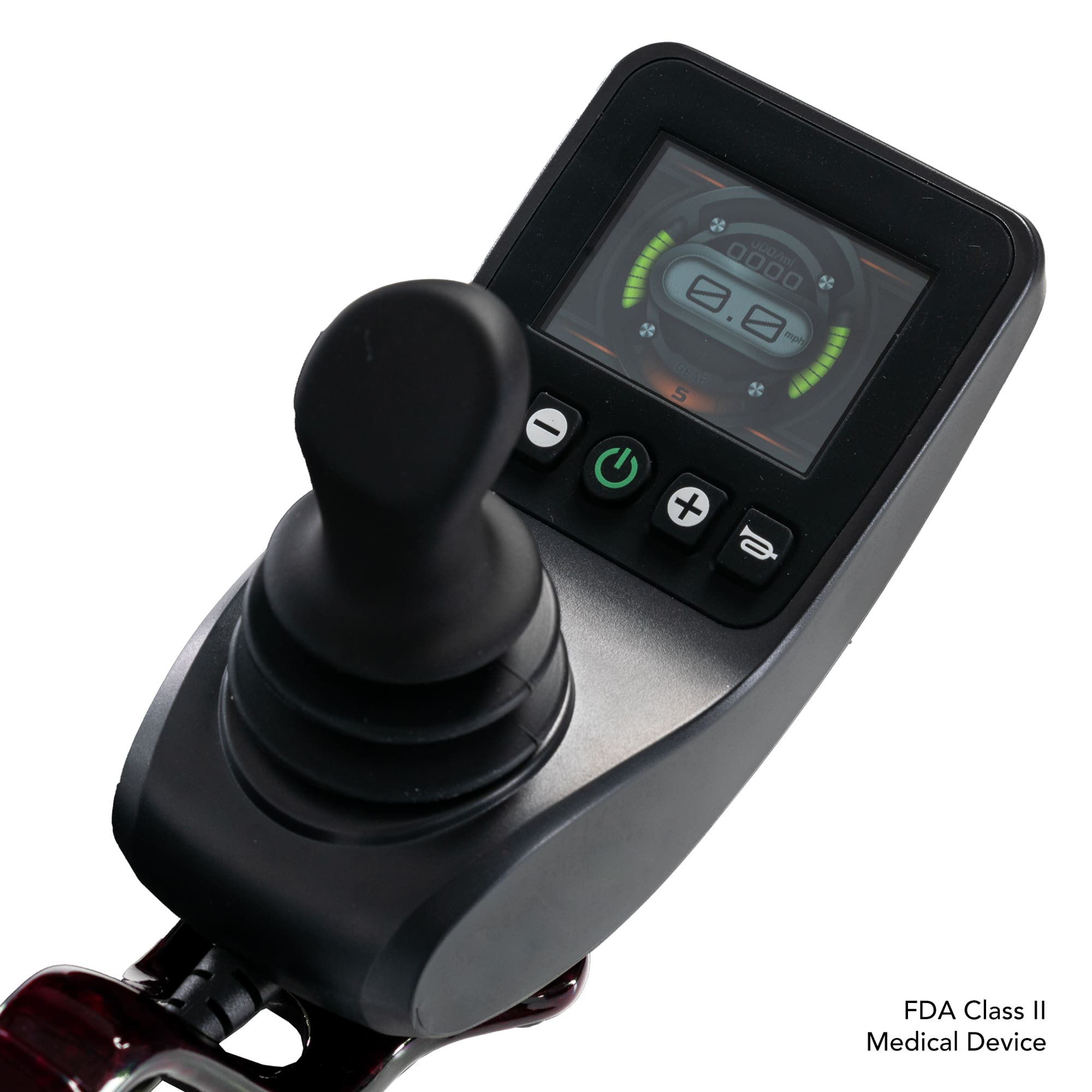

- Quick disconnect LCD joystick with digital display,
- USB-C port & puddle light
- Mesh cup holder, cushion and adjustable lap belt, (standard)
OPTIONAL ACCESSORIES
- Additional 12Ah
- airline-compliant battery**
- Additional 20Ah
- lithium battery (Coming Soon)
- Battery Travel Bag
- Headrest with Attendant
- Control Bracket
- Jazzy® Travel Kit (Coming Soon)
- Military Patches
- Simplicity Cushion 20”x 20”
- Elevating Leg Rests (Coming Soon)
| Model | Jazzy Carbon HD |
|---|---|
| Weight Capacity | 400 lbs. |
| Maximum Speed* | Up to 3.7 mph |
| Ground Clearance | 1” at motor |
| Turning Radius** | 36.4” |
| Overall Length** | 36.81” |
| Overall Width | 26.4” |
| Front Casters | 6.5” solid |
| Drive Wheels | 10.6” solid |
| Range Per Charge* | Up to 12.4 miles |
| Total Weight Without Batteries | 32.2 lbs. |
| Standard Seat | 20” x 20″ |
| Motor Output | 24v/250W |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | 20 AH |
| Battery Charger | 2 amp |
| Warranty | Frame: 5 years Electrical Control/Lever System, Motor/Drive System, Bearing Sleeve, and Battery: 1-year |
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments. K0899 Power Mobility Device not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.*
