Description
FEATURES
- Unit weighs 27.8 lbs. without the battery
- 300-lb. weight capacity
- Durable carbon fiber frame

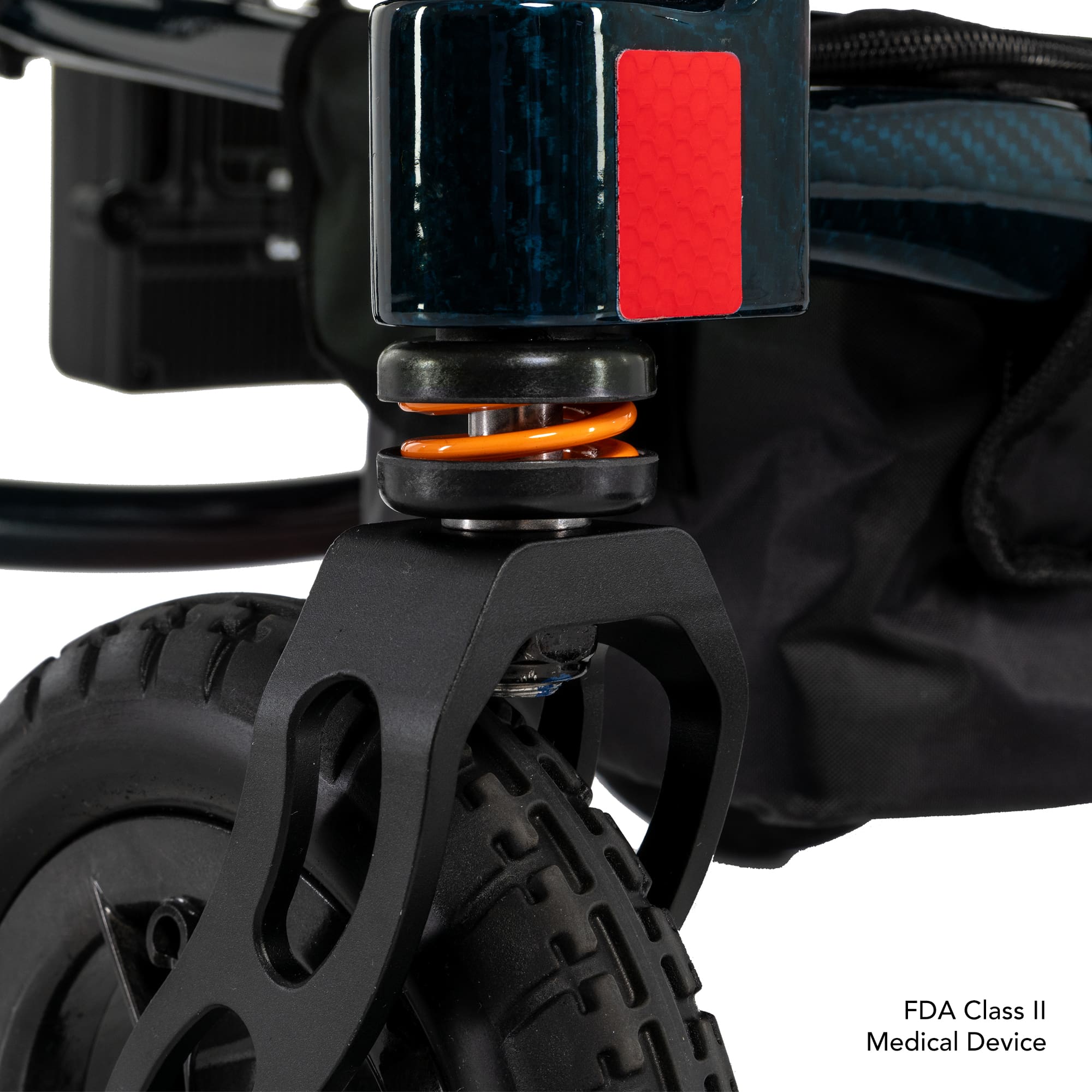

- Front suspension for a smooth ride
- Top speed of up to 3.7 mph

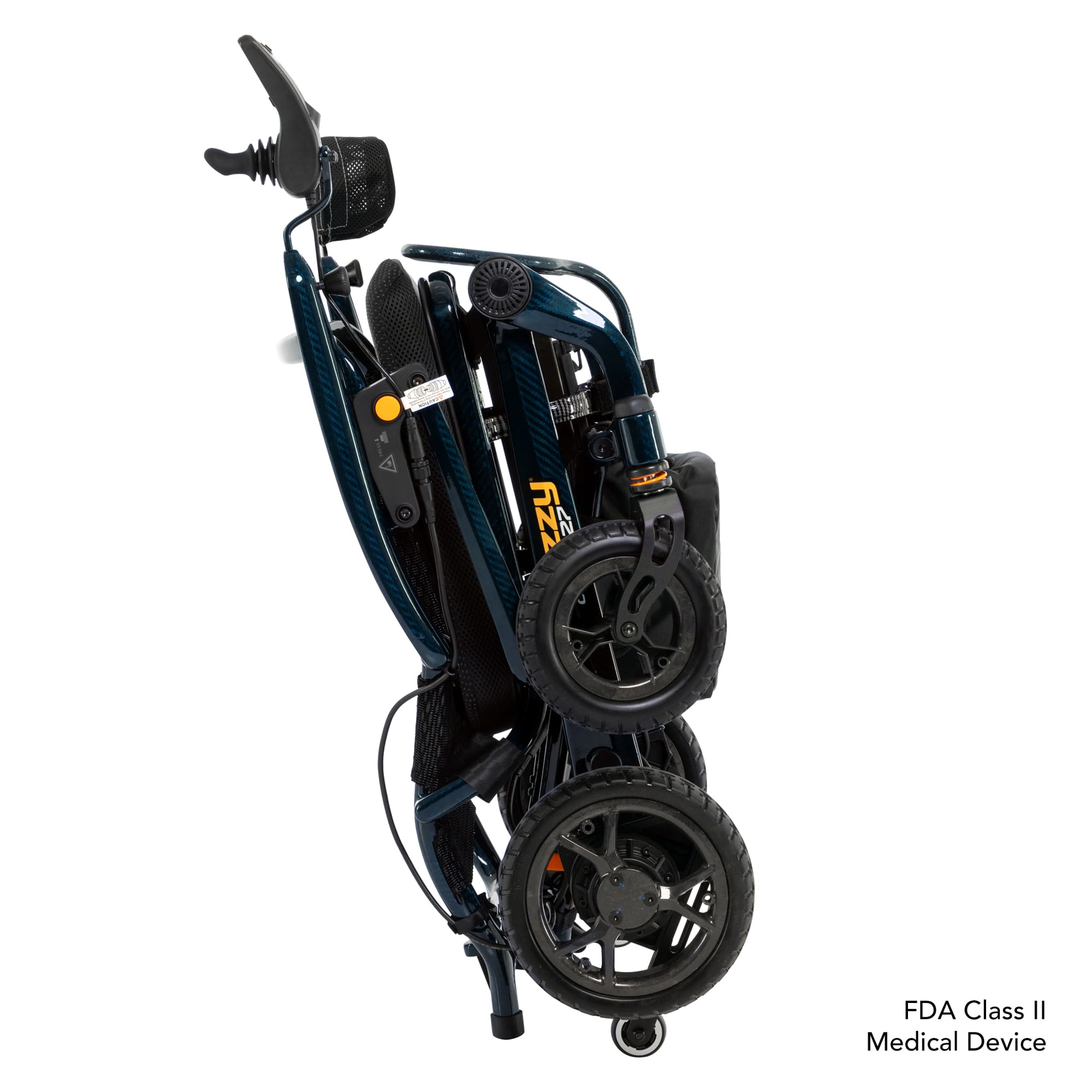

- Folded dimensions: 27.5” L x 23.4” W x 13.38 H
- Easy fold design secures with a strap
- Flip-up lightweight carbon fiber arms
- 12 Ah, airline compliant6 lithium battery (standard)

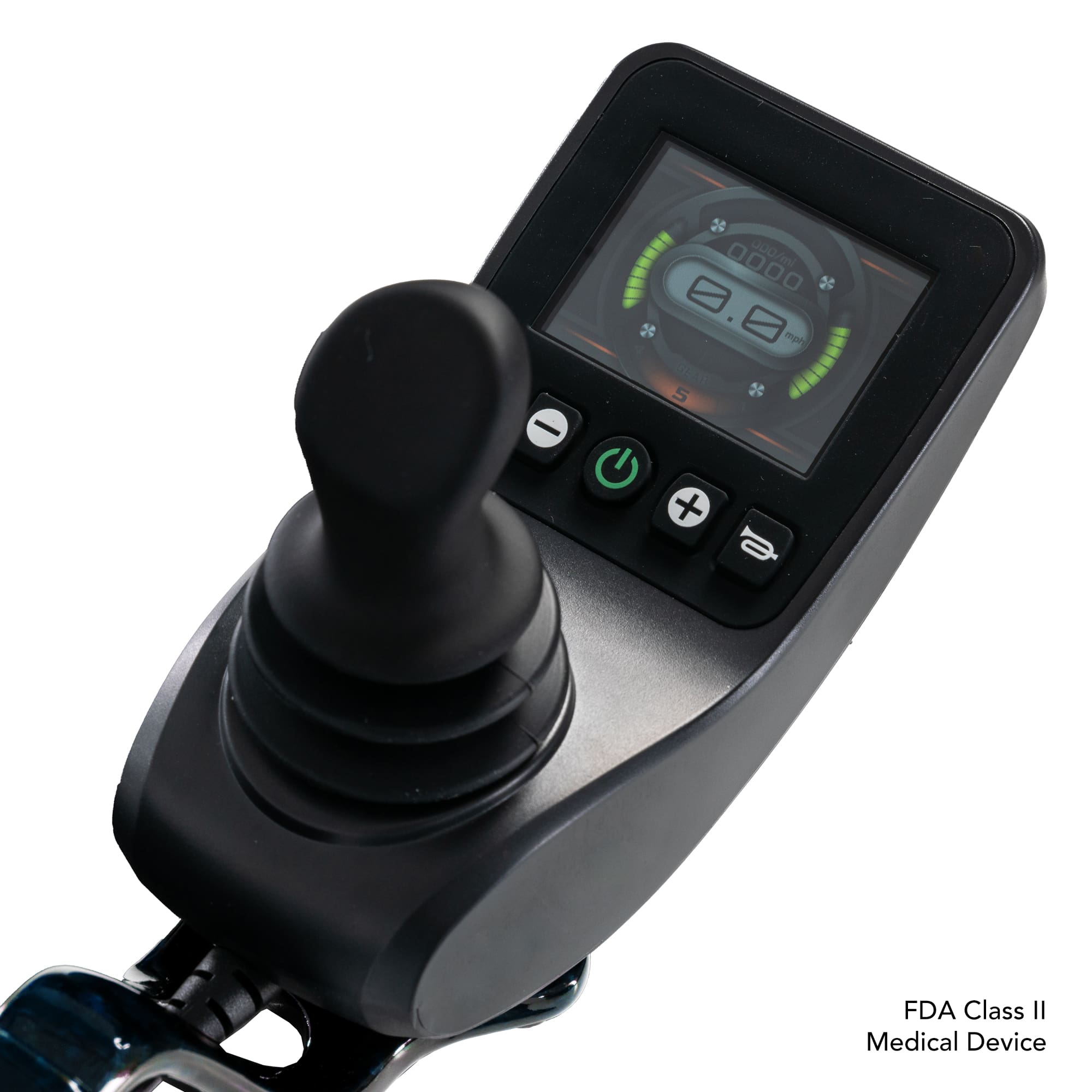

- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion and adjustable lap belt (standard)
OPTIONAL ACCESSORIES
- Additional 12 Ah airline-compliant
- lithium battery6
- Additional 20 Ah lithium battery
- (COMING SOON)
- Battery travel bag
- Headrest and attendant
- control bracket
- Jazzy® travel kit
- Simplicity cushion – 17” x 17”
| Model | Jazzy Carbon 27 |
|---|---|
| Weight Capacity | 300 lbs. |
| Maximum Speed* | Up to 3.7 mph |
| Ground Clearance | 1” at motor |
| Turning Radius** | 33.4” |
| Overall Length** | 35.04” |
| Overall Width | 23.43” |
| Front Casters | 6.89” solid |
| Drive Wheels | 8.27” solid |
| Suspension Type | Front suspension |
| Range Per Charge* | Up to 9.3 miles |
| Total Weight Without Batteries | 27.8 lbs. |
| Standard Seat | 17” x 17” |
| Motor Output | 24v/250W brushless motors |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | 12 AH Lithium Battery Box |
| Battery Charger | 2 amp |
| Warranty | Frame: 5 years Electrical Control/Lever System, Motor/Drive System, Bearing Sleeve, and Battery: 1-year limited |
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments. K0899 Power Mobility Device not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.*
